Right Angle Reducers

★Use in any direction and easy to install.
★High input speed and high output torque density.
★Low backlash and maintenance-free.
★Lower noise and lower vibration.

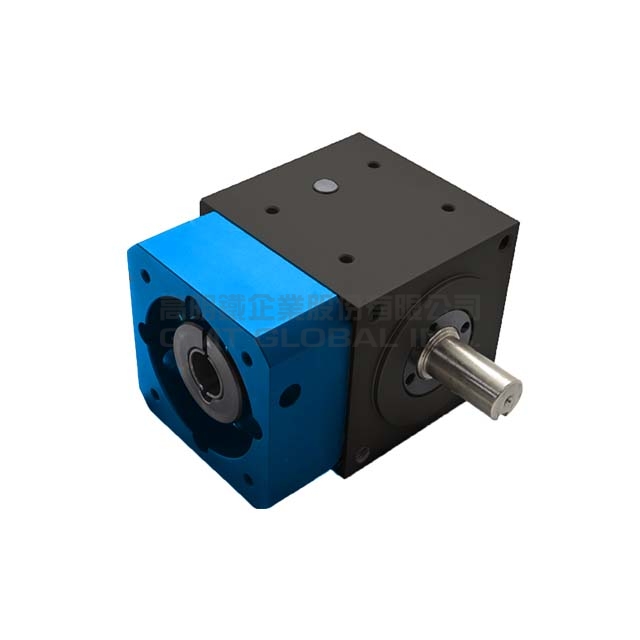

★This product pic. shows as GTS90, which is only compatible with servo motor.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.09.08

Model No.	GTS42-R2	GTS42-R3	GTS60-R1	GTS60-R2	GTS60-R3	GTS90-R2	GTS90-R3
Spec.	□42	□42	□60	□60	□60	□90	□90
Rated Output Moment (N・m) Parameter	19	16	14	24	24	48	40
Rated Output Moment (N・m) Reduction Ratio	2	3	1	2	3	2	3
Rated Input Speed (rpm)	1500	1500	1500	1500	1500	1500	1500
Max. Input Speed (m)	5000	5000	5000	5000	5000	5000	5000
Backlash (arcmin)	≦6	≦6	≦6	≦6	≦6	≦6	≦6
Torsional Rigidity (N.m/arcmin)	2.5	2.5	6	6	6	12	12
Allowable Radial Force (N)	350	350	600	600	600	1050	1050
Allowable Axial Force (N)	160	160	300	300	300	550	550
Durability (H) (Continuous operation 10000)	20000	20000	20000	20000	20000	20000	20000
Effciency (%)	≧97%	≧97%	≧97%	≧97%	≧97%	≧97%	≧97%
Protection Marking	IP40	IP40	IP40	IP40	IP40	IP40	IP40
Lubricant	Synthetic	Synthetic	Synthetic	Synthetic	Synthetic	Synthetic	Synthetic
Noise (dB)	≦65	≦65	≦65	≦65	≦65	≦65	≦65
Weight (KG)	0.6	0.6	1.3	1.3	1.3	2.9	2.9
