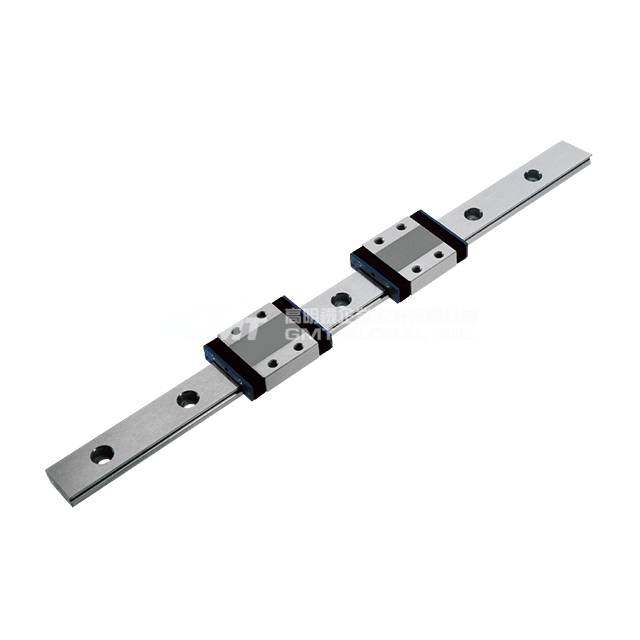

GSW-Miniature Linear Guide Way-Wide Rail Type

4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.
Circulation system is a plastic part designed to reduce friction noise during block running.
End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2018.07.09

Model No.	Assembled Dimensions		Rail Dimensions(mm)					Block Dimensions(mm)
Model No.	H2	W3	W2	H1	P1	P4	ØDxØdxh1	W1	L1	L2	H3
GS05-W-N	6.5	3.5	10	4	20	-	5.5x3x 1.6	17	21.1	15.1	5
GS05-W-L	6.5	3.5	10	4	20	-	5.5x3x 1.6	17	27.2	21.2	5
GS07-W-N	9	5.5	14	5.2	30	-	6x3.5x 3.5	25	31.6	21.2	7
GS07-W-L	9	5.5	14	5.2	30	-	6x3.5x 3.5	25	40.5	30.1	7
GS09-W-N	12	6	18	7.3	30	-	6x3.5x 4.5	30	39.1	27.9	8.6
GS09-W-L	12	6	18	7.3	30	-	6x3.5x 4.5	30	50.7	39.5	8.6
GS12-W-N	14	8	24	8.5	40	-	8x4.5x 4.5	40	44.4	31	10.1
GS12-W-L	14	8	24	8.5	40	-	8x4.5x 4.5	40	59.4	46	10.1
GS15-W-N	16	9	42	9.5	40	23	8x4.5x 4.5	60	55.3	38.5	12
GS15-W-L	16	9	42	9.5	40	23	8x4.5x 4.5	60	74.4	57.6	12

Model No.	Block Dimensions(mm)			Rated Loading(N)		Static Torque(Nm)			Weight
Model No.	P2	P3	M x H2	C	C0	M_R	M_P	M_Y	L2	H3
GS05-W-N	6.5	13	M2.5x 1.5	451	855	4.4	2.1	2.1	6	274
GS05-W-L	11	13	M2.5 x 1.5	584	1249	6.5	3.9	3.9	8	274
GS07-W-N	10	19	M3x3	1121	1990	14.3	6.9	6.9	19	506
GS07-W-L	19	19	M3x3	1492	2983	21.5	14.2	14.2	26	506
GS09-W-N	12	21	M3x3	1929	3425	31.5	13	13	36	921
GS09-W-L	24	23	M3x3	2423	4741	43.6	25.4	25.4	50	921
GS12-W-N	15	28	M3x3.5	2912	4940	60.5	25	25	64	1443
GS12-W-L	28	28	M3x3.5	3867	7410	90.8	53.6	53.6	91	1443
GS15-W-N	20	45	M3x4.5	4812	7966	163.1	43.4	43.4	134	2762
GS15-W-L	35	45	M3x4.5	6389	11951	244.7	88.4	88.4	196	2762
