    GRM 30 - Slide Table


    ★ Using crossed roller guiding type, V-grooved and cross-roller are used for line contact transmission in the structure to achieve high-precision movement and load-resistant performance.

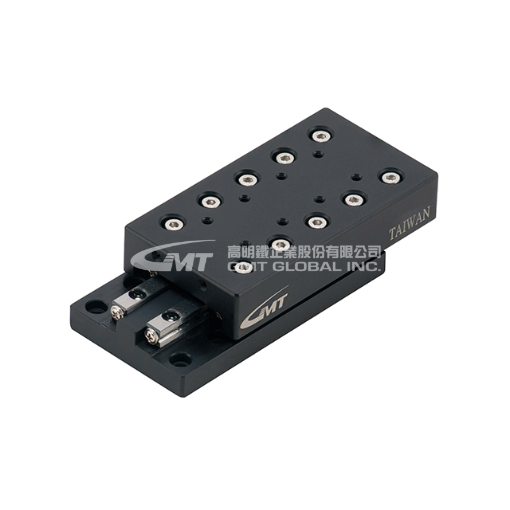

    This product pic. shows as GRM-B、GRM-S.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.08.15

    Model No.

    GRM 30

    Specification

    Table Size (mm)

    30 X 25

    30 X 35

    30 X 45

    30 X 55

    30 X 65

    30 X 75

    30 X 85

    Material

    Table

    GRM:Aluminum Alloy + Black Anodized,Normal

    GRM - N:S50C + Ni,Antirust

    GRM - B:S50C + Phosphate,Black Coating

    GRM - S:SUS 440C + Ni,Corrosion - Resisting

    * GRM - S Series table and rail in 1 unit, V-groove in rail doesn't have surface finished

    Rail

    GRM:SUJ 2

    GRM - N:SUJ 2 + Ni

    GRM - B:SUJ 2

    Retainer

    SUS 304

    Roller

    GRM:SUJ 2

    GRM - N:SUJ 2

    GRM - B:SUJ 2

    GRM - S:SUS 440C

    Max. Stroke (mm)

    12

    18

    25

    32

    40

    45

    50

    Roller Dia. (mm)

    Ø 1.5

    Basic Dynamic Load Rating (C) (N)

    379

    523

    657

    783

    903

    1131

    1240

    Basic Static Load Rating (Co) (N)

    576

    865

    1153

    1441

    1729

    S:1929

    2306

    2594

    Allowable Load (Fu) (N)

    192

    288

    384

    480

    576

    769

    865

    Static Rated Moment

    MR (N・m)

    2.6

    3.9

    5.2

    6.5

    7.8

    10.4

    11.7

    MP (N・m)

    1.2

    2.6

    4.6

    7.2

    10.4

    18.4

    23.3

    MY (N・m)

    1.4

    3.0

    5.2

    7.9

    11.2

    17.3

    22.0

    Weight (Kg)

    Normal

    0.040.050.070.080.10.120.13

    Antirust

    0.090.120.160.190.230.270.3

    Corrosion - Resisting

    0.090.120.160.190.230.260.3

    Table Moving Accuracy (µm)

    Center Parallelism

    2

    Side Parallelism

    4

    5







    Crossed Roller Slide Table Introduction

    ♦   Crossed Roller Slide Table

    Table is composed of GMT crossed roller type slide rail set, V-grooved, crossed rollers matched with assembly plane in hign accuracy processing, and base; installed with limit mechanism between two ends of table, is small type of limit stroke linear motion product in high rigidity. Performance as high accuracy and low friction, apply to electric parts used in automatic installation equipment and optical gauge.

    ♦   Slide Table Unit Selection Procedure

    1. Select unit width and length.
    2. Select model per installation.
    3. Acquire model no. from catalogs.
    4. Select standard, antirust or corrosion-resisting per environment request.

    ♦   Slide Table Property

    • High Accuracy:In order to perform function of GMT Slide Table entirely, all assembly planes of table and base are processed in precise grinding to get linear motion in high accuracy.
    • Low Friction:Low friction because of non-circulation. Stable performance in whether low speed or high speed.
    • High Rigiditym, Space Saving:Besides high load capacity and high rigidity of roller guide in GMT linear motion table, space saving design is also considered at same time.
    • No Demand of Adjustment:Accuracy and preload would be matched perfectly to use directly without heavy adjustment.
    • Easy Installation:Standardized assembly holes of unit and base are easy to lock and secure with screw only to have linear motion in high accuracy.



    Installation Selection
