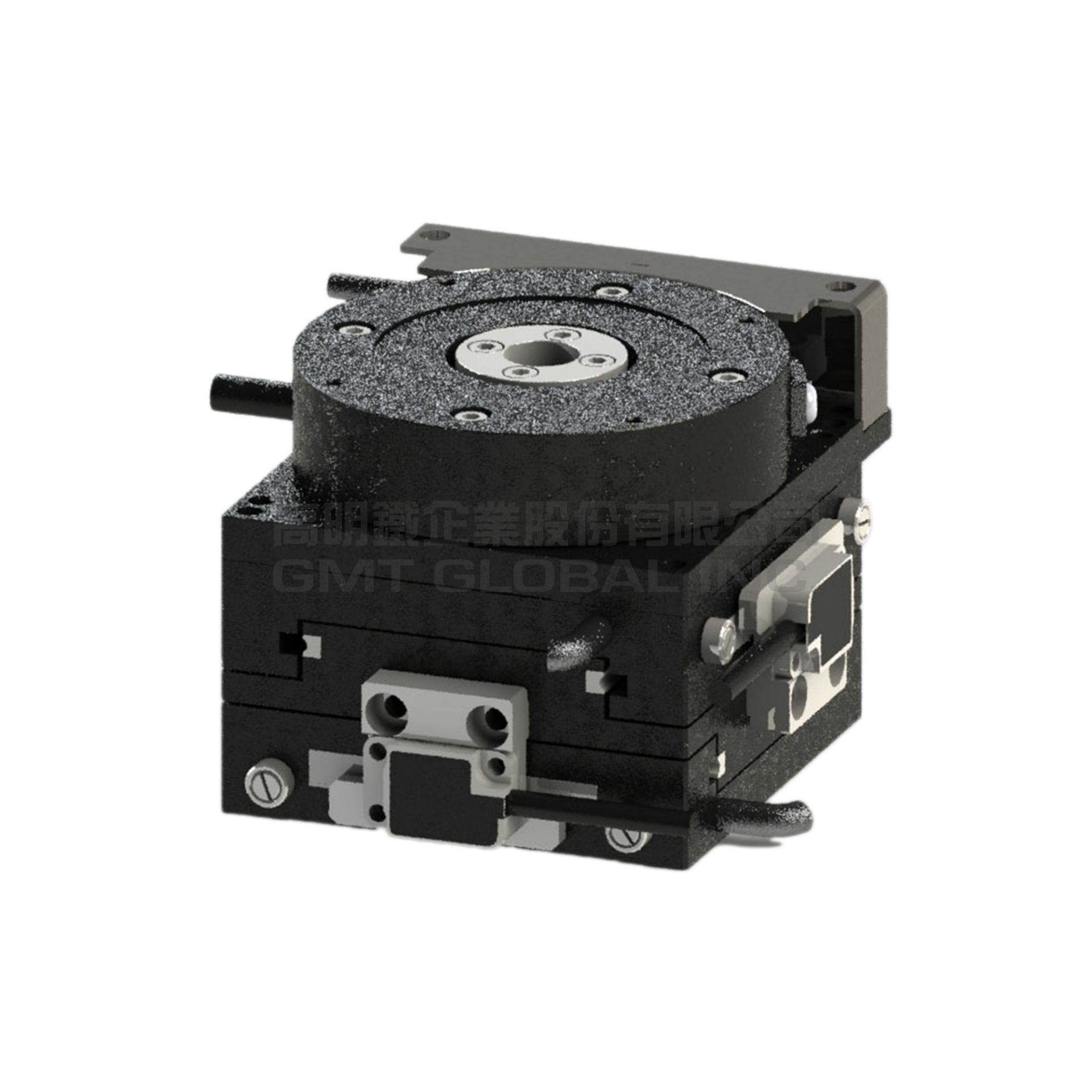

GLM Micro-Alignment Stage

• High response speed：The direct-drive design enables the platform to respond quickly, making it suitable for high-utilization rate requirements such as high-speed pick-and-place and on-the-fly inspection.
• High-precision positioning：The XYT platform is equipped with a high-precision optical ruler, which enables the platform to have high-precision performance.
• Compact Design：The internal structure is compact, with a linear motor and an integrated base design, making it suitable for applications with limited space.
• Flexible：The optical scale has various resolutions and can be customized to meet different process requirements.
• Multiple application scenarios：It is widely used in visual alignment, optical inspection, precision assembly, fiber optic alignment and other fields.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Model No.	GLM65-XYT	GLM80-XYT	GLM95-XYT	GLM130-XYT
Dimensions(mm)	657657	839492	9595102.5	130130110
Single axial motor parameter comparison
Continuous Thrust(N)	4.6	8.8	23.8	56.3
Peak Thrust(N)	27.6	26.4	95	225
Encoder Type	Optical, Digital	Optical, Digital	Optical, Digital	Optical, Digital
Repeatability Precision(μm)	± 1	± 1	± 1	± 1
Stroke(mm)	10	20	10	20
T-axis motor parameter comparison
Max torque(Nm)	0.5	0.2	0.4	1.14
Rated torque(Nm)	0.1	0.78	1.75	4.55
Moment of Inertia(Kg·m^2)	0.0001	0.00015	0.002	0.005
Repeatability Precision(arc-sec)	± 3	± 3	± 3	± 3
Encoder Type	Optical, Digital	Optical, Digital	Optical, Digital	Optical, Digital
Stroke(°)	± 25	± 25	± 5	± 5
For any special requirement, please contact GMT. Driver and extension cables are sold separately.
