Update：2023.11.23

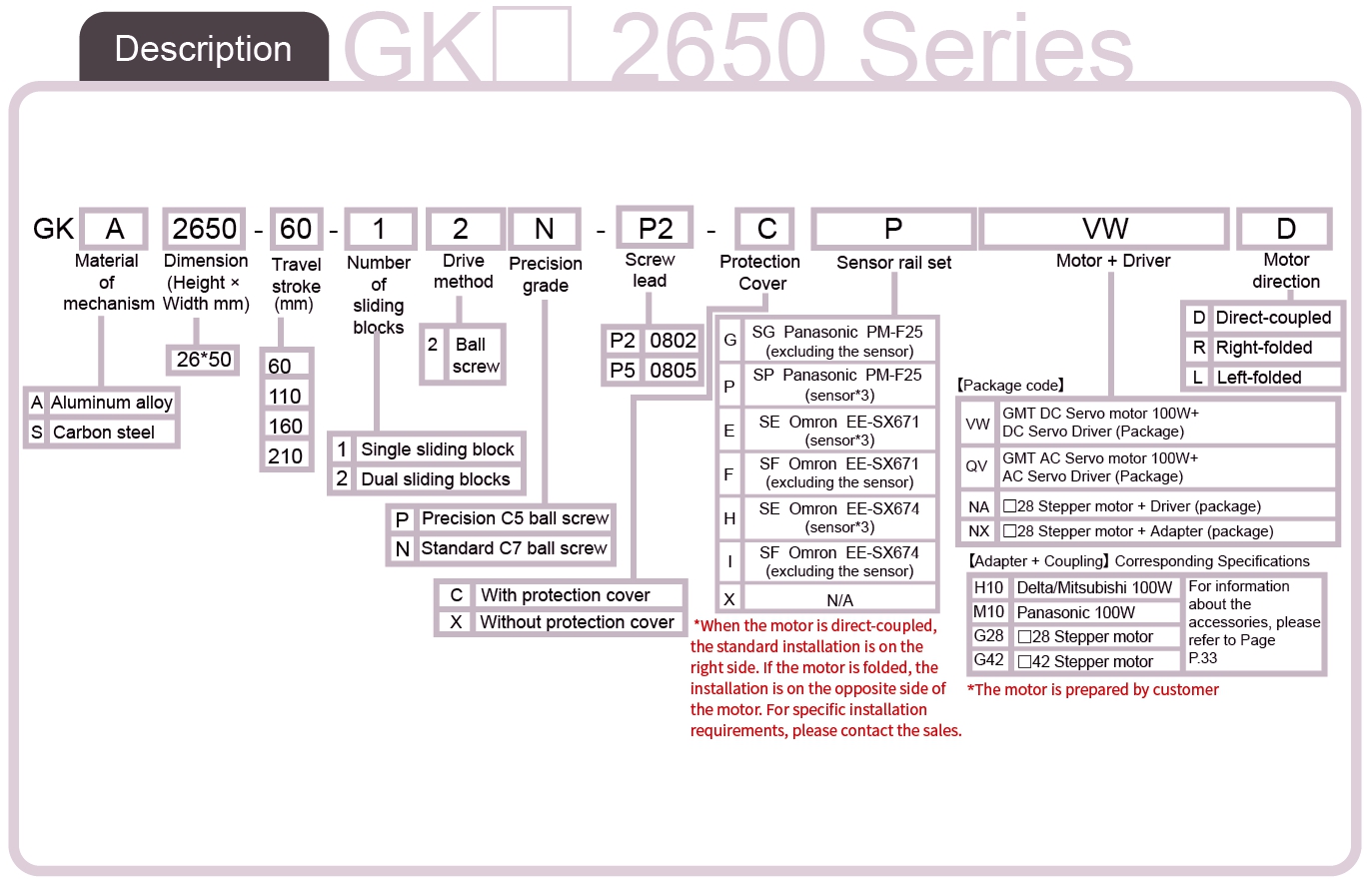

Model No.
GK2650-N
GK2650-P
Mechanical Spec.
Size (H x W) (mm)
26 X 50
Travel Stroke (mm)
60、110、160、210
Drive Type
Ball Screw Ø8
Lead (mm)
2
5
Rail
Recirculating Linear Ball Guide
Stage Material
A：Aluminum Alloy
S：Carbon Steel
Accuracy Level
N：Standard
P：Precision
Precision Spec.
Stepper Max. Speed (mm / sec)
40
100
Servo Max. Speed (mm / sec)
250
Positioning Precision (mm)
-
0.02
Repeatability Precision (mm)
± 0.005
± 0.003
Movement Paralleism (mm)
0.025
0.01
Max. Torque (N・cm)
1.5
3
Stepper Electrical Spec.
Open-loop Driver
☐28，GTR22G-D
Close-loop Driver
Stage Side Connector
15-Pin male end connetor D-SUB
Controller Side Connector
15-Pin female end connetor D-SUB

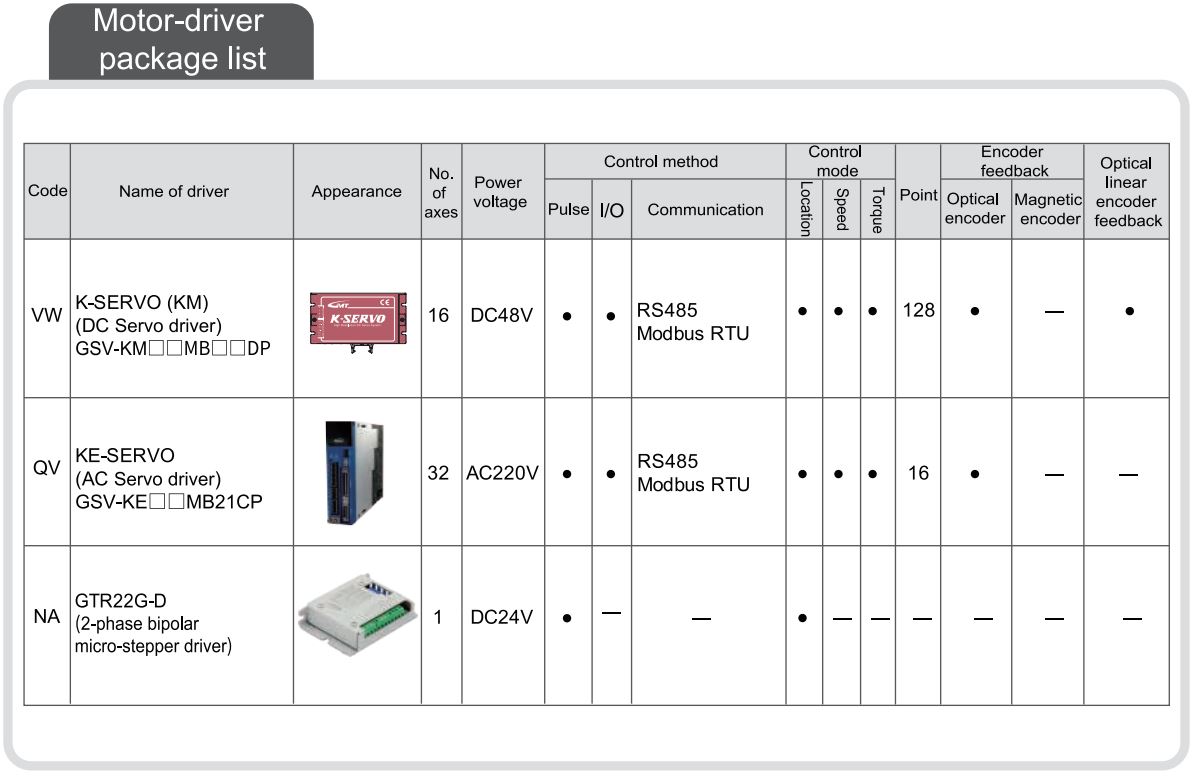

DC Servo Electrical Spec.
DC Servo Motor
100W：GSVM-D01MD4
DC Servo Driver
100W：K-SERVO (GSV-KM01MR-48DP)
Manufacturer：TE Connectivity
Power cord：172159-1+170355-1 (Male end)
Encoder cable：172161-1+170365-1 (Male end)
Manufacturer：KST
Power cord：E1510-RED (European Terminals)
Manufacturer：JST
Encoder cable：PHDR-12VS+SPHD-001T-P0.5 (Female end)
AC Servo Electrical Spec.
AC Servo Motor
100W：GSVM-A01LC4
AC Servo Driver
100W：GSV-KE01MB21CP
Manufacturer：Tyco electronics
Power cord：172167-1 (Male end)
Encoder cable：172171-1 (Male end)
Power cord：172159-1 (Female end)
Encoder cable：172163-1 (Female end)
