Stepper / Servo Motor

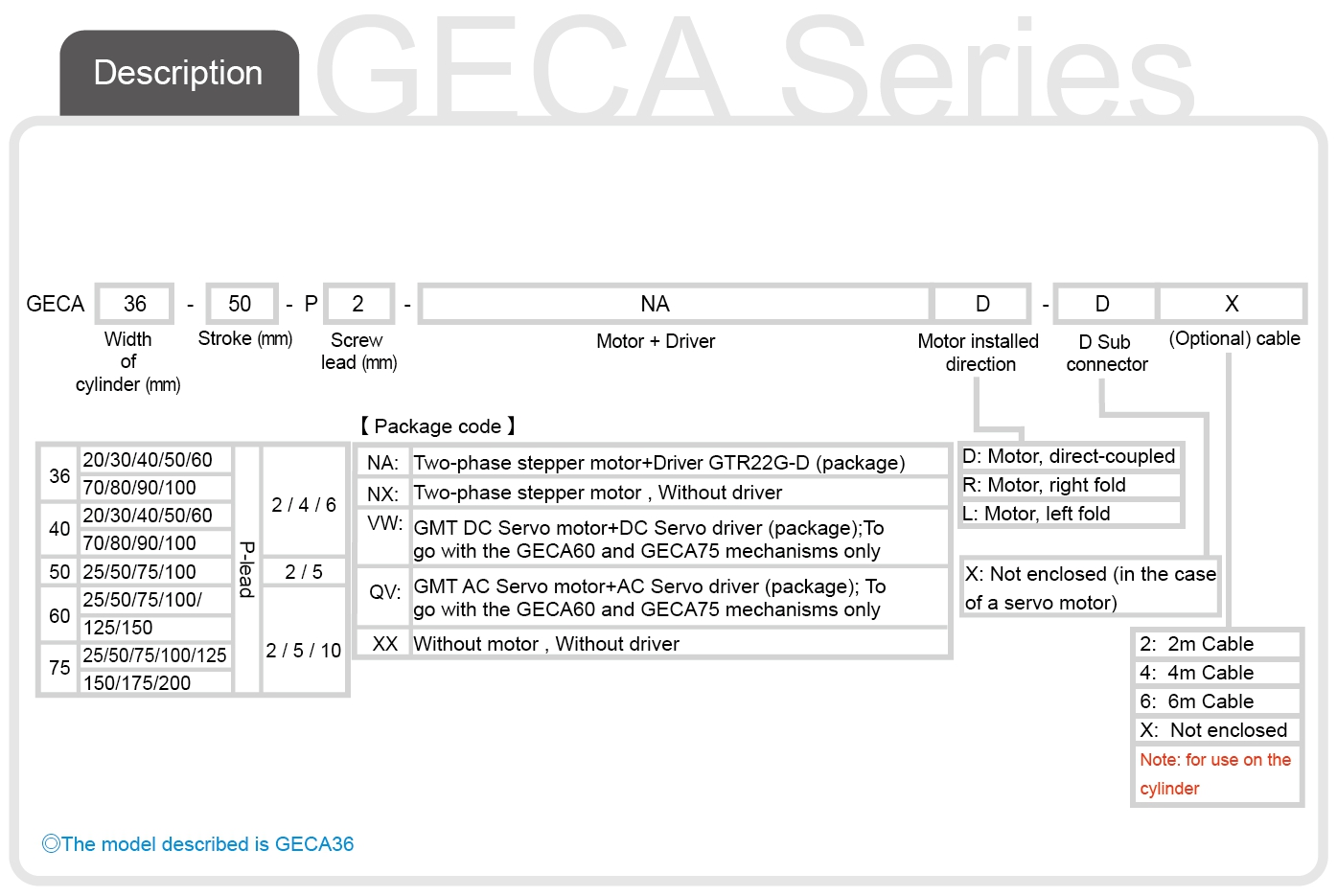

Model No.

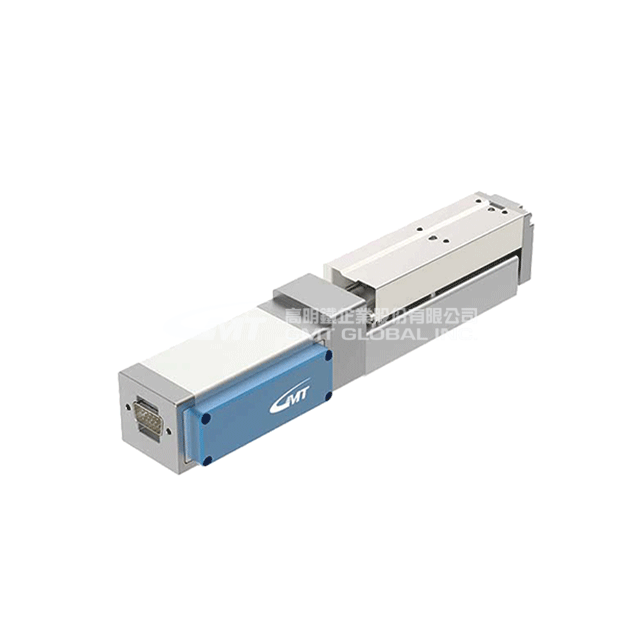

GECA60
Mechanical Spec.
Table Size (mm)
60
Travel Stroke (mm)
25 ~ 150 (Per 25mm)
Drive Type
Ball Screw Ø10
Lead
2
5
10
Rail
Linear Ball Circulation
Stepper Precision Spec.
Stage Material
Aluminum Alloy / Black Anodized
Wiring Method
N:Standard
Max. Speed (mm/s)
30
75
150
Repeatability Precision (mm)
± 0.005
Max. Thrust Force (N)
567
224
112
Horizontal Load (Kgf)
8
6
4
Vertical Load (Kgf)
1

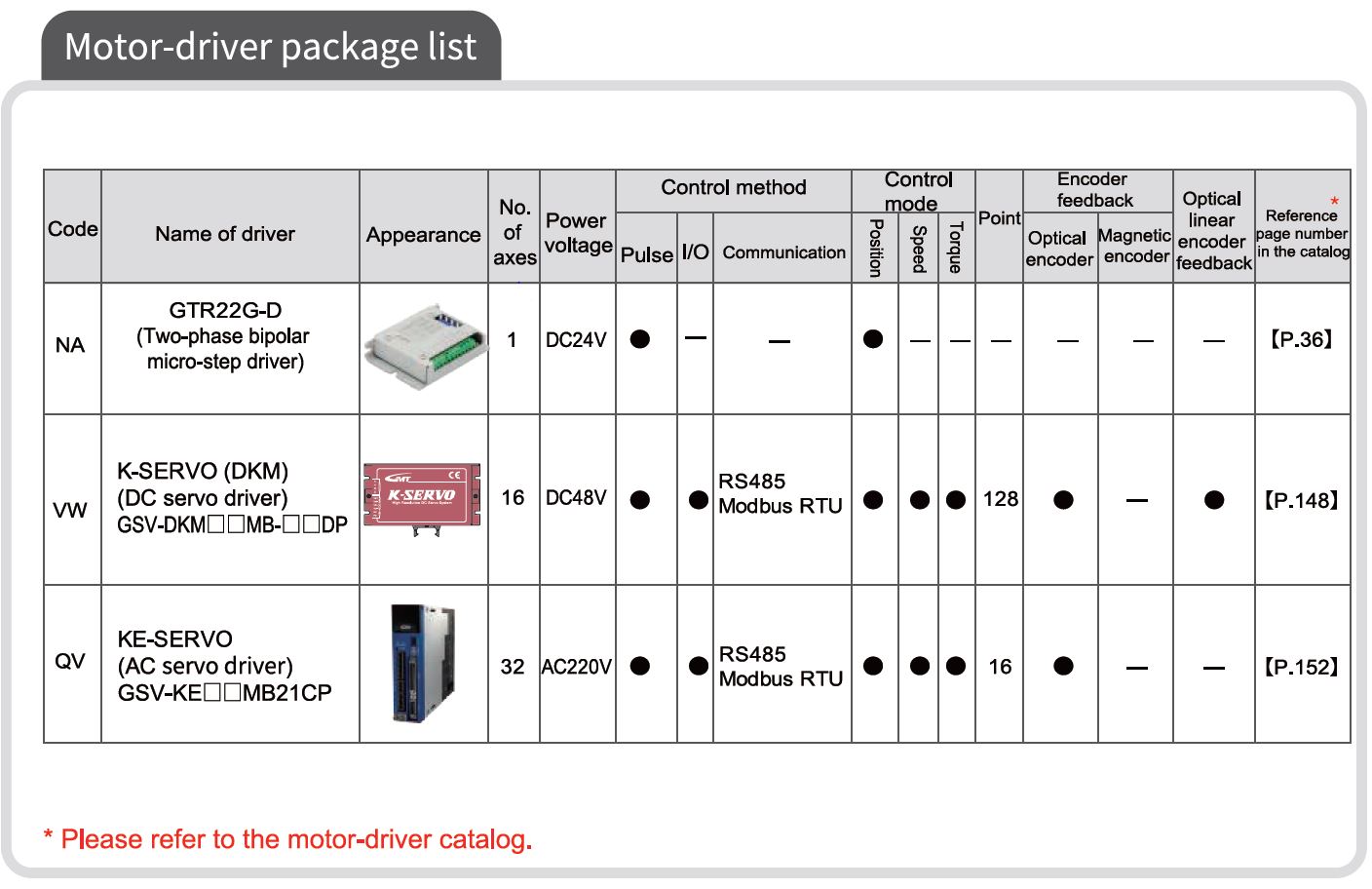

Stepper Electrical Spec.
Open-loop Driver
☐42,GTR22G-D
Stage Side Connector
15-Pin male connector D-SUB
Controller Side Connector
15-Pin female connector D-SUB
DC Servo Precision Spec.
50
125
250
848
339
169
DC Servo Electrical Spec.
DC Servo Motor
50W:GSVM - D0BMD4
DC Servo Driver
K-SERVO (GSV-DK0BMR-48DP)
Manufacturer:TE Connectivity
Power cord:172159-1 + 170366-1 (Male end)
Encoder cable:172161-1 + 170365-1 (Male end)
Manufacturer:KST
Power cord:E1510-RED (European Terminals)
Manufacturer:JST
Encoder cable:PHDR-12VS+SPHD-001T-P0.5 (Female end)
AC Servo Precision Spec.
853
341
170
AC Servo Electrical Spec.
AC Servo Motor
100W:GSVM-A01LC4
AC Servo Driver
GSV-KE01MB-21CP
Manufacturer:Tyco electronics
Power cord:172167-1 (Male end)
Encoder cable:172171-1 (Male end)
Power cord:172159-1 (Female end)
Encoder cable:172163-1 (Female end)
