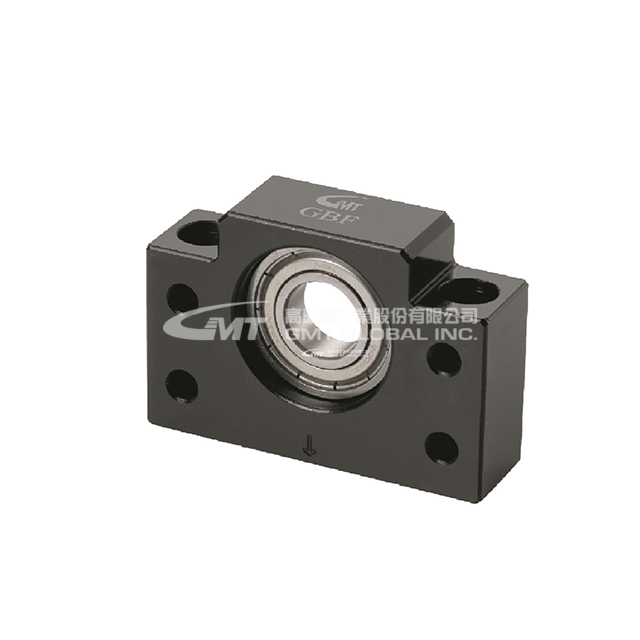

<span style="font-size: 12pt;">★Ball Screw Support Unit-Square Support Side(DUAL-PURPOSE) </span> <br /><span style="font-size: 12pt;">★Grade-Standard type </span> <br /><span style="font-size: 12pt;">★(Using Angular Contact Ball Bearings) </span>">
Update:2022.04.19
★ Material
Model No | Material | ||
GBF□□–SB | S50C/Black Dyed | ||
GBF□□–SN | S50C/Ni- Plating |
Model No | Shaft Dia. | Surface finish | |||||||
Standard | - | - | |||||||
GBF30-S口 | 30 | BF |
Selection Notes |
[Model]:Pick up the model according to assembly method. Assembly: 1. Plane mounting:GAK、GBK、GEK、GAF、GBF、GEF、GSW、GSWE、GUN、GTN。 2. Suspension and spindle mount:GFK、GFF、GRWE、GUR、GTR。 [Size]:Decide the size according to the ballscrew shaft O.D., and the center height. [Grade]:Standard and economic types for options. [Surface Finish]:Black dyed - Regular environment use, low humidity. Nickel plating - Clean room use. [Bearing category]:Available Japanese series and Taiwanese series. |
