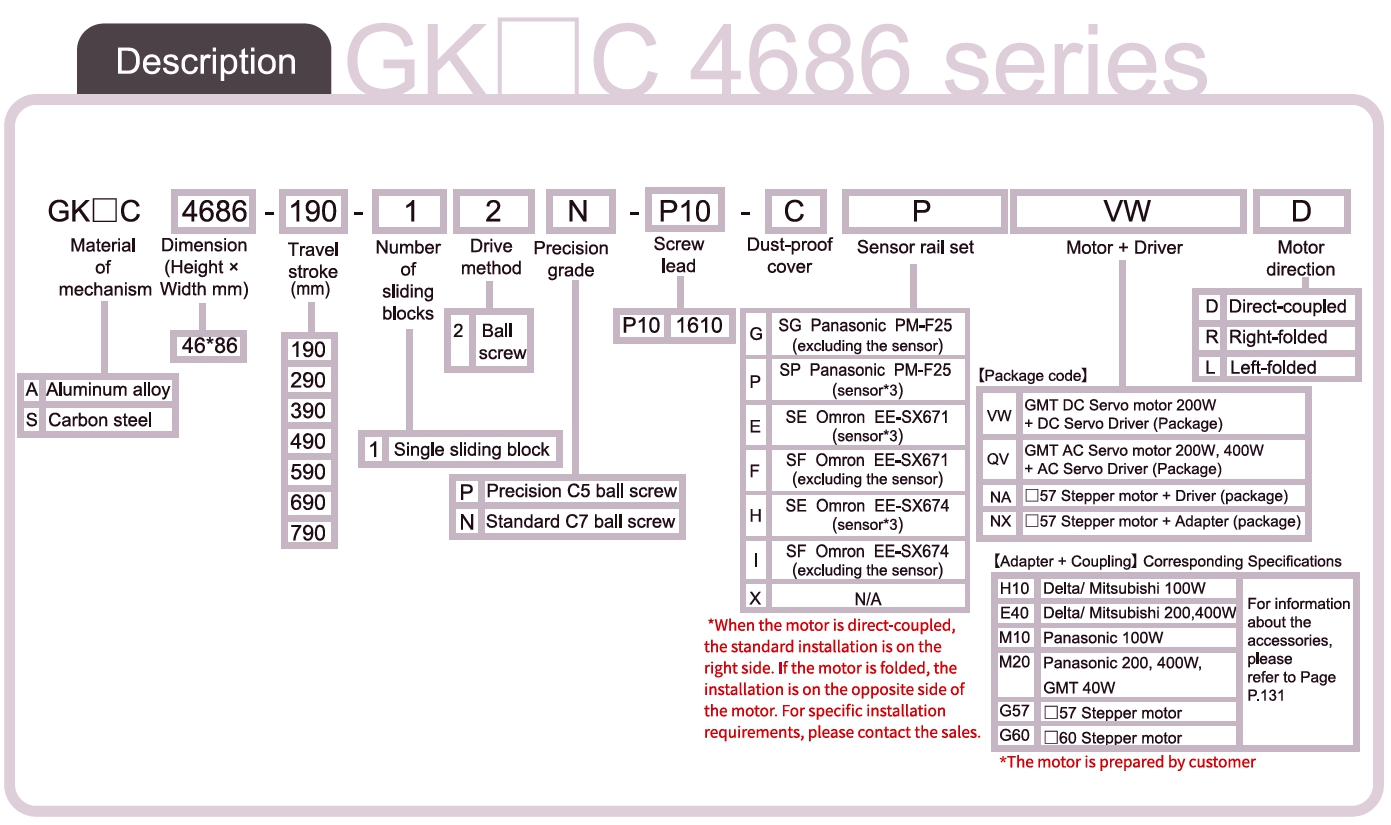

Dust-proof Actuator GK☐C4686

★Gothic arc groove of linear ball guiding formed strong structure.
★Ball screw transmission has the characteristics of high and easy changeable transmission.
★Based on accuracy requirement, divided into standard type (N) and precision type (P).
★Dust-proof design, effectively prevent intrusion of foreign matter and dust.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.11.24

Model No.		GKAC4686-N	GKSC4686-N	GKAC4686-P	GKSC4686-P
Mechanical Spec.	Size (H x W) (mm)	46 X 86
	Travel Stroke (mm)	190、290、390、490、590、690、790		190、290、390、490、590、690、790
	Drive Type	Ball Screw Ø16
	Lead (mm)	10	10	10	10
	Rail	Recirculating Linear Ball Guide
	Stage Material	Aluminum Alloy	Carbon Steel	Aluminum Alloy	Carbon Steel
	Accuracy Level	Standard	Standard	Precision	Precision
Precision Spec. *2	Stepper Max. Speed (mm / sec) *1	200
	Servo Max. Speed (mm / sec) *1	500
	Positioning Precision (mm)	-		Travel Stroke：190、290 Positioning Precision：0.02 Travel Stroke：390、490、590 Positioning Precision：0.04 Travel Stroke：690、790 Positioning Precision：0.08
	Repeatability Precision (mm)	± 0.005		± 0.003
	Movement Paralleism (mm)	Travel Stroke：190、290、390、490 Movement Paralleism：0.035 Travel Stroke：590 Movement Paralleism：0.04 Travel Stroke：690、790 Movement Paralleism：0.05		Travel Stroke：190、290、390、490 Movement Paralleism：0.015 Travel Stroke：590 Movement Paralleism：0.02 Travel Stroke：690、790 Movement Paralleism：0.04
	Max. Torque (N・cm)	10		Travel Stroke：190、290、390 Max. Torque：12 Travel Stroke：490、590 Max. Torque：15 Travel Stroke：690、790 Max. Torque：-
Stepper Electrical Spec.	Open-loop Driver	☐42，GTR22G-D
	Close-loop Driver	-
	Stage Side Connector	15-Pin male end connetor D-SUB
	Controller Side Connector	15-Pin female end connetor D-SUB

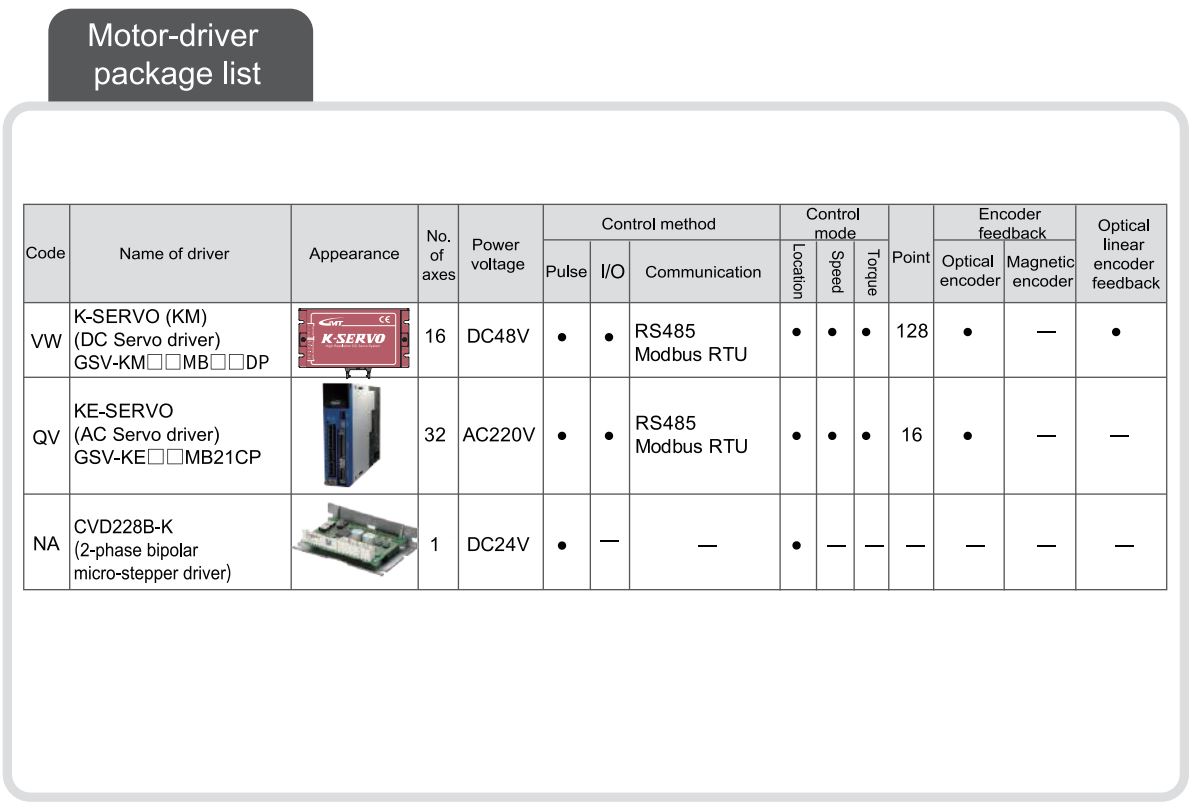

DC Servo Electrical Spec.	DC Servo Motor	200W：GSVM-D02MD4
	DC Servo Driver	200W：K-SERVO (GSV-KM02MR-48DP)
	Stage Side Connector	Manufacturer：TE Connectivity Power cord：172159-1+170355-1 (Male end) Encoder cable：172161-1+170365-1 (Male end)
	Controller Side Connector	Manufacturer：KST Power cord：E1510-RED (European Terminals) Manufacturer：JST Encoder cable：PHDR-12VS+SPHD-001T-P0.5 (Female end)
AC Servo Electrical Spec.	AC Servo Motor	200W：GSVM-A02LC4
	AC Servo Driver	200W：GSV-KE02MB21CP
	Stage Side Connector	Manufacturer：Tyco electronics Power cord：172167-1 (Male end) Encoder cable：172171-1 (Male end)
	Controller Side Connector	Manufacturer：Tyco electronics Power cord：172159-1 (Female end) Encoder cable：172163-1 (Female end)

*1 The servo motor's maximum speed is calculated with 3000rpm and the stepper motor's maximum speed is calculated with 1200rpm.

*2 Without the folded parts installed, the accuracy of folded motor is measured when it is directly coupled with an actuator.
