<span style="font-size: 12pt;">★ Guide- Circular linear ball guiding, Gothic arc-groove formed by dual arc-grooves individually on upper and lower rails of body. Ball moving in single groove is structured by 2 points-contact, and total 4contact points in dual arc-groove to form strong rail constructure.</span> <br /><span style="font-size: 12pt;">★ Transmission Parts-Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.</span> <br /><span style="font-size: 12pt;">★ Material-Carbon Steel</span> <p><br /><span style="font-size: 12pt;"><span style="color: #e03e2d;"><strong>★</strong></span><span style="color: #e03e2d;"><strong>This product pic. shows as CXC60100-S2NN-ND which is only for reference, please base on below specification for further information.</strong></span></span></p>">
★This product pic. shows as CXC60100-S2NN-ND which is only for reference, please base on below specification for further information.
Update:2023.09.28
Model No. | CXC8030-F2NN-ND-P1 | CXC8030-F2NN-ND-P2 | CXC8050-F2NN-ND-P1 | CXC8050-F2NN-ND-P2 | CXC8075-F2NN-ND-P1 | CXC8075-F2NN-ND-P2 |
Table Size (mm) | 80x80 | 80x80 | 80x80 | 80x80 | 80x80 | 80x80 |
Travel Stroke (mm) | 30 | 30 | 50 | 50 | 75 | 75 |
Drive Type | Ball Screw Ø8,Lead 1mm | Ball Screw Ø8,Lead 2mm | Ball Screw Ø8,Lead 1mm | Ball Screw Ø8,Lead 2mm | Ball Screw Ø8,Lead 1mm | Ball Screw Ø8,Lead 2mm |
Rail | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding |
Stage Material | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
Surface Treatment | Nickel Plating | Nickel Plating | Nickel Plating | Nickel Plating | Nickel Plating | Nickel Plating |
Main Unit Weight (Kg) | 1.79 | 1.79 | 1.86 | 1.86 | 2.03 | 2.03 |
Coupling | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 |
Accuracy Level | Standard | Standard | Standard | Standard | Standard | Standard |
Wiring Method | GMT Standard | GMT Standard | GMT Standard | GMT Standard | GMT Standard | GMT Standard |
Resolution (Pulse) (µm) | 5 (Full) / 2.5 (Half) | 10 (Full) /5 (Half) | 5 (Full) / 2.5 (Half) | 10 (Full) /5 (Half) | 5 (Full) / 2.5 (Half) | 10 (Full) /5 (Half) |
Max. Speed (Full Step) (mm / sec) | 20 | 40 | 20 | 40 | 20 | 40 |
Positioning Presion (µm) | 15 | 15 | 15 | 15 | 15 | 15 |
Repeatability Precision (µm) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
Multi-point Repeatability Precision(µm) | N/A | N/A | N/A | N/A | N/A | N/A |
Load Capacity (Kgf) | 16 | 16 | 16 | 16 | 16 | 16 |
Missed Step (µm) | 3 | 3 | 3 | 3 | 3 | 3 |
Moment Stiffness | N/A | N/A | N/A | N/A | N/A | N/A |
Pitch / Yaw | N/A | N/A | N/A | N/A | N/A | N/A |
Parallelism (µm) | 20 | 20 | 20 | 20 | 20 | 20 |
Dynamic Straightness (µm) | 3 | 3 | 3 | 3 | 3 | 3 |
Dynamic Parallelism (µm) | 10 | 10 | 10 | 10 | 10 | 10 |
Motor Type | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper |
Motor Shaft Numbers | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts |
Motor Brand | GMT | GMT | GMT | GMT | GMT | GMT |
Motor Model | 2MS-N28D32A | 2MS-N28D32A | 2MS-N28D32A | 2MS-N28D32A | 2MS-N28D32A | 2MS-N28D32A |
Driver Brand | GMT | GMT | GMT | GMT | GMT | GMT |
Driver Model | GTR22G-D | GTR22G-D | GTR22G-D | GTR22G-D | GTR22G-D | GTR22G-D |
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS |
Controller Side Connetor | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) |
Origin Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
Limit Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
Power Voltage | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% |
Control Output | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA |
Output Control | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) |
Model No. | CXC80100-F2NN-ND-P1 | CXC80100-F2NN-ND-P2 | CXC80150-F2NN-ND-P2 | CXC80200-F2NN-ND-P2 | CXC80250-F2NN-ND-P2 | CXC80300-F2NN-ND-P2 |
Table Size (mm) | 80x80 | 80x80 | 80x80 | 80x80 | 80x80 | 80x80 |
Travel Stroke (mm) | 100 | 100 | 150 | 200 | 250 | 300 |
Drive Type | Ball Screw Ø8,Lead 1mm | Ball Screw Ø8,Lead 2mm | Ball Screw Ø8,Lead 2mm | Ball Screw Ø8,Lead 2mm | Ball Screw Ø8,Lead 2mm | Ball Screw Ø8,Lead 2mm |
Rail | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding | Circular Linear Ball Guiding |
Stage Material | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
Surface Treatment | Nickel Plating | Nickel Plating | Nickel Plating | Nickel Plating | Nickel Plating | Nickel Plating |
Main Unit Weight (Kg) | 2.2 | 2.2 | 2.5 | 2.78 | 3.08 | 3.38 |
Coupling | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 | FAMCS11.6-5*5 |
Accuracy Level | Standard | Standard | Standard | Standard | Standard | Standard |
Wiring Method | GMT Standard | GMT Standard | GMT Standard | GMT Standard | GMT Standard | GMT Standard |
Resolution (Pulse) (µm) | 5 (Full) / 2.5 (Half) | 10 (Full) /5 (Half) | 10 (Full) /5 (Half) | 10 (Full) /5 (Half) | 10 (Full) /5 (Half) | 10 (Full) /5 (Half) |
Max. Speed (Full Step) (mm / sec) | 20 | 40 | 40 | 40 | 40 | 40 |
Positioning Presion (µm) | 15 | 15 | 20 | 20 | 30 | 30 |
Repeatability Precision (µm) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
Multi-point Repeatability Precision(µm) | N/A | N/A | N/A | N/A | N/A | N/A |
Load Capacity (Kgf) | 16 | 16 | 16 | 16 | 16 | 16 |
Missed Step (µm) | 3 | 3 | 3 | 3 | 3 | 3 |
Moment Stiffness | N/A | N/A | N/A | N/A | N/A | N/A |
Pitch / Yaw | N/A | N/A | N/A | N/A | N/A | N/A |
Parallelism (µm) | 20 | 20 | 20 | 20 | 20 | 20 |
Dynamic Straightness (µm) | 3 | 3 | 5 | 5 | 8 | 8 |
Dynamic Parallelism (µm) | 10 | 10 | 15 | 20 | 20 | 30 |
Motor Type | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper |
Motor Shaft Numbers | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts | ☐ 28 Double Shafts |
Motor Brand | GMT | GMT | GMT | GMT | GMT | GMT |
Motor Model | 2MS-N28D45A | 2MS-N28D45A | 2MS-N28D45A | 2MS-N28D45A | 2MS-N28D45A | 2MS-N28D45A |
Driver Brand | GMT | GMT | GMT | GMT | GMT | GMT |
Driver Model | GTR22G-D | GTR22G-D | GTR22G-D | GTR22G-D | GTR22G-D | GTR22G-D |
Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS |
Controller Side Connetor | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) |
Origin Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
Limit Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
Power Voltage | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% |
Control Output | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA |
Output Control | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) | Testing (sensing):output transistor OFF (closed) |
System Configuration Diagram |
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver. ♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs. |
Axis Definition |
GMT has defined different axis as the following figuration according to the movement direction: Horizontal movement direction is X and Y axis. Vertical movement direction is Z axis. Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis. Green arrows present the specified axis movement direction. |

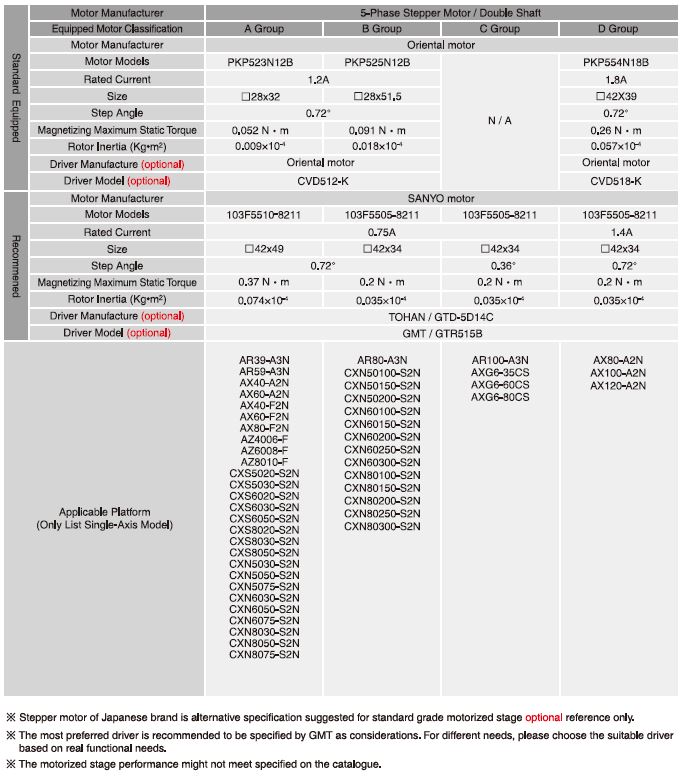

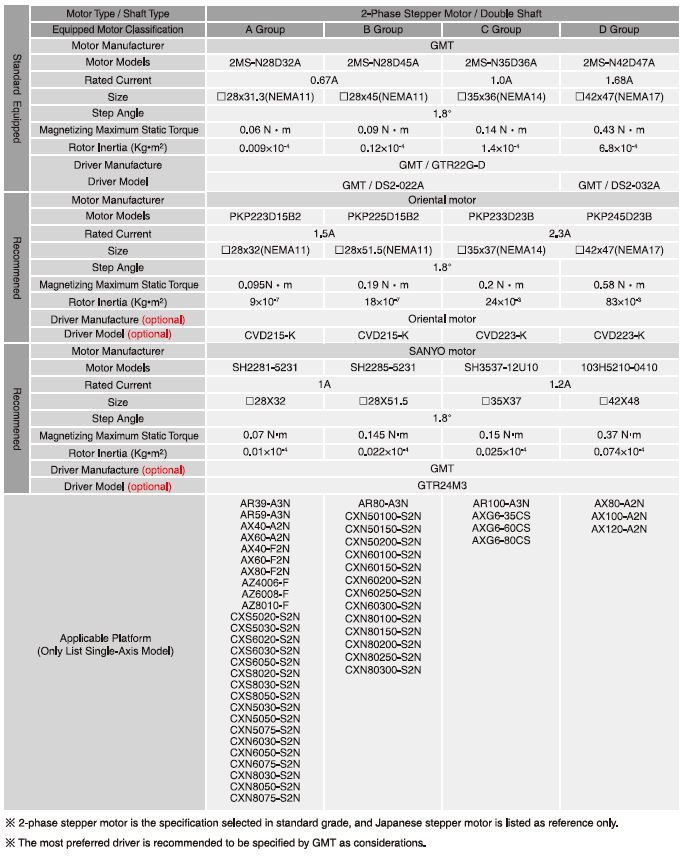

Motor・driver Reference Table |
|
