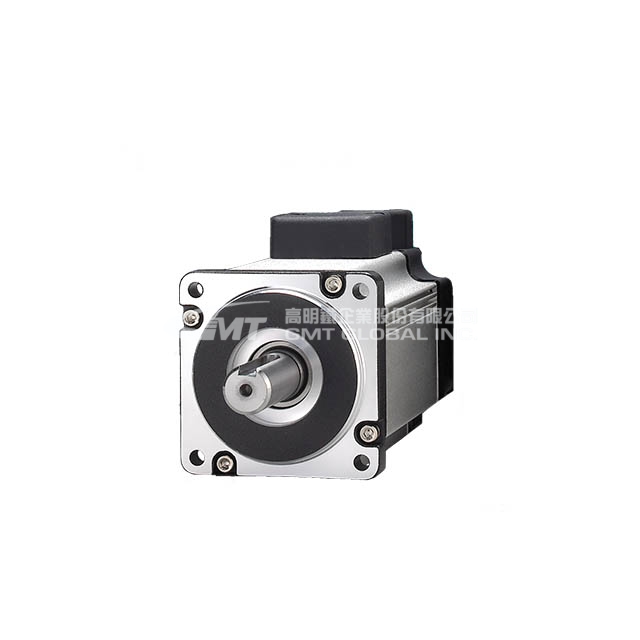

AC Servo Motor |
Model No. | GSVM-A01LA | GSVM-A02LA | GSVM-A04LA | GSVM-A08LA | GSVM-A10LA | GSVM-A15LA | GSVM-A20LA |
Rated Power (KW) | 0.1 | 0.2 | 0.4 | 0.75 | 1 | 1.5 | 2 |
Rated Torque (N・m) | 0.32 | 0.65 | 1.3 | 2.4 | 4.8 | 7.2 | 9.6 |
Max. Torque (N・m) | 1.12 | 2.275 | 4.55 | 7.92 | 14.4 | 21.6 | 28.8 |
Rated Rotation Speed (rpm) | 3000 | 3000 | 3000 | 3000 | 2000 | 2000 | 2000 |
Max. Rotation Speed (rpm) | 6000 | 6000 | 6000 | 6000 | 3000 | 3000 | 3000 |
Rated Current (A rms) | 1.3 | 1.72 | 2.82 | 5.42 | 5.42 | 8 | 10 |
Max. Current (A rms) | 4.55 | 6.02 | 9.87 | 17.9 | 16.26 | 24 | 30 |
Max. Variable Power (KW / s) | 32.8 | 24.6 | 56.3 | 72 | 19.7 | 29.5 | 40.42 |
Rotor Inertia (Kg・m2) | 3.12E-06 | 1.72E-05 | 3E-05 | 8E-05 | 1.17E-03 | 1.76E-03 | 2.28E-03 |
Mechanical Constant (ms) | 3.95 | 5.28 | 3.95 | 5.2 | 16.64 | 14.96 | 15.22 |
Axis Torque (N・m) | 0.02 | 0.04 | 0.04 | 0.5 | 0.19 | 0.17 | 0.17 |
Torque Constant (N・m / A) | 0.25 | 0.38 | 0.46 | 0.44 | 0.89 | 0.9 | 0.96 |
Voltage Constant (mV / rpm) | 22.23 | 36.37 | 39.26 | 38.11 | 75.93 | 75.78 | 84.26 |
Electrical Impedance (Ohm) ) | 6.92 | 4.22 | 2.38 | 1.1 | 0.96 | 0.58 | 0.54 |
Electrical Reactance (mH) | 10.57 | 13.9 | 7.2 | 7.75 | 4.85 | 3.15 | 3 |
Electrical Constant (ms) | 1.53 | 3.29 | 3.03 | 7.05 | 5.05 | 5.43 | 5.56 |
Encoder Resolution (P / R) | ( 21-bit Relative) 2,097,152 |
Insulation Level | F |
Insulation Impedance | > 100 MΩ，DC 500V |
Insulation Withstand Voltage | AC 1500V，60 sec |
Operating Temperature (°C) | 0 ~ 40°C |
Storage Temperature (°C) | - 20 ~ 80°C |
Operating Humidity | 20 ~ 90% RH，No Condensation |
Storage Humidity | 20 ~ 90% RH，No Condensation |
Vibration Resistant | 5G |
Ingress Protection Ratings | IP65 |
