<span style="font-size: 12pt;">★ Light-weight and Extra-thin-It creates the wing-free thin & lighter mechanism by applying the XYθ module.</span> <br /><span style="font-size: 12pt;">★ The cross-roller bearings have been pre-loaded, to perform the whole unit high precision and rigidity.</span> <br /><span style="font-size: 12pt;">★ Hollow structure-It can be used for the optical inspection devices or conduction tester.</span> <br /><span style="font-size: 12pt;">★ Longer usage life and reliable accuracy of the Alignment stage itself is guaranteed by lubrication.</span> <br /><span style="font-size: 12pt;">★ All products are Cryogenic Treatment. It can not only significantly upgrade the toughness and operation lifetime but also improve the dimension stability of materials.</span> <br /><span style="font-size: 12pt;">★ 3D CMM- Ensure the quality and precision of the stage.</span> <p><br /><span style="font-size: 12pt;"><span style="color: #e03e2d;"><strong>★</strong></span><span style="color: #e03e2d;"><strong> GAS00-200HC:The central support module has directional restrictions. If the platform needs to be hung upside down, it must be informed in advance to avoid abnormalities in the support module.</strong></span></span></p>">
★ GAS00-200HC:The central support module has directional restrictions. If the platform needs to be hung upside down, it must be informed in advance to avoid abnormalities in the support module.
Update:2023.06.28
Model No. | GAS00-160LC-PN | GAS00-160LC-UPJ | GAS00-160EC-PN | GAS00-160VC1-PN | GAS00-160VC1-UPJ | GAS00-190EC-PN | GAS00-190EC-UPJ | GAS00-190HC-PN | GAS00-190HC-UPJ | GAS00-200HC-PN | GAS00-200HC-UPJ |
Stage Size (mm) | 160x160 | 160x160 | 160x160 | 160x160 | 160x160 | 190x190 | 190x190 | 190x190 | 190x190 | 200x200 | 200x200 |
Base Size (mm) | 170x170 | 170x170 | 170x170 | 170x170 | 170x170 | 210x210 | 210x210 | 210x210 | 210x210 | 210x210 | 210x210 |
Height (mm) | 50 | 50 | 50 | 55 | 55 | 65 | 65 | 65 | 65 | 60 | 60 |
Travel Stroke (mm) | ±3x±3 | ±3x±3 | ±3x±3 | ±9x±9 | ±9x±9 | ±4x±4 | ±4x±4 | ±4x±4 | ±4x±4 | ±7x±7 | ±7x±7 |
Angle (θ)° | ±2° | ±2° | ±2° | ±8.5° | ±8.5° | ±3° | ±3° | ±3° | ±3° | ±3° | ±3° |
Stage Material | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
Stage Surface Treatment | Black Finished | Black Finished | Black Finished | Black Finished | Black Finished | Black Finished | Black Finished | Black Finished | Black Finished | Black Finished | Black Finished |
Base Material | Duralumin | Duralumin | Duralumin | Carbon Steel | Carbon Steel | Duralumin | Duralumin | Duralumin | Duralumin | Duralumin | Duralumin |
Base Surface Treatment | Black Anodized | Black Anodized | Black Anodized | Black Oxide | Black Oxide | Black Anodized | Black Anodized | Black Anodized | Black Anodized | Black Anodized | Black Anodized |
Ball Screw Spec. | Ø6-P1 | Ø6-P1 | Ø6-P1 | Ø6-P1 | Ø6-P1 | Ø6-P1 | Ø6-P1 | Ø6-P1 | Ø6-P1 | Ø8-P1 | Ø8-P1 |
Dynamic Load Capacity (kgf) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 60 | 60 |
Static Load Capacity (kgf) | 60 | 60 | 60 | 120 | 120 | 60 | 60 | 65 | 65 | 130 | 130 |
Repeatability Accuracy (μm) | ±5 | ±1 | ±5 | ±5 | ±1 | ±5 | ±1 | ±5 | ±1 | ±5 | ±1 |
Parallelism (μm) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Motor Brand | GMT | Oriental | GMT | GMT | Oriental | GMT | Oriental | GMT | Oriental | GMT | Oriental |
Motor Type | 2-Phase Stepper | 5-Phase Stepper | 2-Phase Stepper | 2-Phase Stepper | 5-Phase Stepper | 2-Phase Stepper | 5-Phase Stepper | 2-Phase Stepper | 5-Phase Stepper | 2-Phase Stepper | 5-Phase Stepper |
Motor Shaft | □28 Double Shaft | □28 Double Shaft | □28 Double Shaft | □28 Double Shaft | □28 Double Shaft | □28 Double Shaft | □28 Double Shaft | □28 Double Shaft | □28 Double Shaft | □42 Double Shaft | □42 Double Shaft |
Motor Model. No. | 2MS- N28D32 A | PKP523 N12B | 2MS- N28D32 A | 2MS- N28D32 A | PKP523 N12B | 2MS- N28D32 A | PKP523 N12B | 2MS- N28D32 A | PKP523 N12B | 2MS- N42D47 A | PKP544 N18B |
Driver Brand | Contact us | Oriental | Contact us | Contact us | Oriental | Contact us | Oriental | Contact us | Oriental | Contact us | Oriental |
Driver Model. No. | Contact us | CVD512 -K | Contact us | Contact us | CVD512 -K | Contact us | CVD512 -K | Contact us | CVD512 -K | Contact us | CVD518 -K |
Characteristics |
♦ Ultra thin appearance Achieved with the lighted crossed roller bearings and modularized structures. ♦ High stiffness and high precision Applying preload operations on every roller bearings of stages for better rigidity and precision. ♦ Hollow structure Lightweight structure of the stages could be suitable for optical inspection devices. ♦ Lubrication system Well lubricating gives the stages longer using life and reliable accuracy. ♦ Genericity Available sizes from 160mm to 1500mm, even capable of heightening load resistance by adding driven modules. |
Applications |
♦ Panel lamination machinery ♦ Panel film laminating machines ♦ Print screen and 3D printing ♦ Angular glass cutting and grinding equipment ♦ Wafe alignment equipment ♦ P.C.D exposure equipment ♦ Software cutting equipment ♦ Semi-conductor equipment |
Structures and Lubrication System |

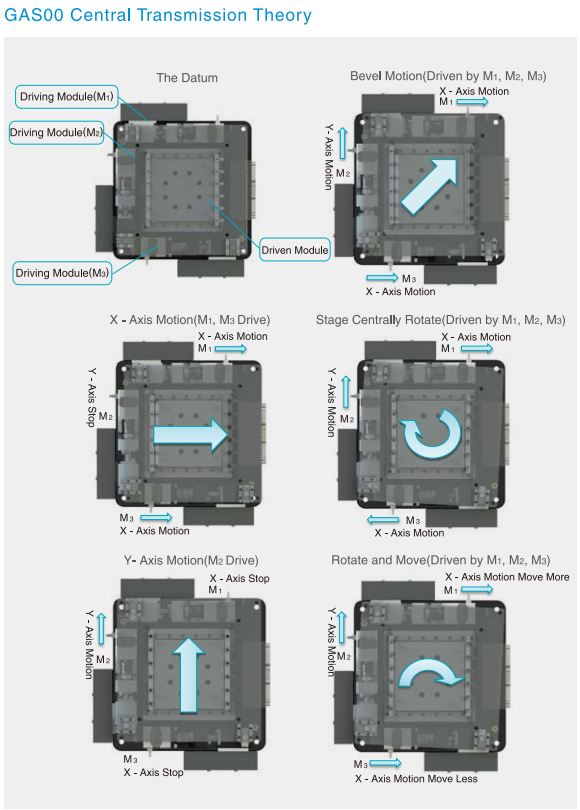

Transmission Theory |
